HomeBattery Materials High-performance silicon anode, 1 micron silicon particles in crosslinked conducting polyanaline matrix – Sigma-Aldrich
Previous product
Silicon, nanoparticles, 40 nm avg. part. size, ≥99% trace metals basis - Sigma-Aldrich
Silicon, nanoparticles, 40 nm avg. part. size, ≥99% trace metals basis - Sigma-Aldrich Login to see prices
Back to products
Next product
Ready-to-Cast Si Anode Slurry for Lithium ion battery, 1-micron silicon particles - Sigma-Aldrich
Ready-to-Cast Si Anode Slurry for Lithium ion battery, 1-micron silicon particles - Sigma-Aldrich Login to see prices
sigma

High-performance silicon anode, 1 micron silicon particles in crosslinked conducting polyanaline matrix – Sigma-Aldrich

Login to see prices

Brand:

Sigma-Aldrich

Synonyms
Doped polyaniline, Si encapsulated in 3D crosslinked polyaniline, Si/PANi composite, Silicon micron particle

General Description
Silicon is a most promising next generation lithium ion battery electrode material, due to its ~10 times higher specific capacity (3600 mAh/g) than graphite (372 mAh/g). However, silicon experiences large volume change (~400%) during lithium insertion, causing it to fracture and detach from current collector, rendering prototypical lithium-silicon batteries to lose most of their capacity in less than 10 charge-discharge cycles. A solution to the capacity and stability issues posed by the significant volume expansion upon lithiation of silicon is critical to the success of high capacity lithium ion batteries.

This silicon/PANi composite utilizes a doped, intrinsically conductive, 3D cross-linked polyaniline as matrix, which could function as both the conductive binder and the polymer electrolyte for silicon-based electrodes. Previous study for a similar silicon-based three-dimensional conducting polymer composite demonstrated increased electrochemically performance due to short diffusion paths and good 3D connectivity, and resulted in a marked improvement in cyclability, with over 90% capacity retention after 5,000 cycles.

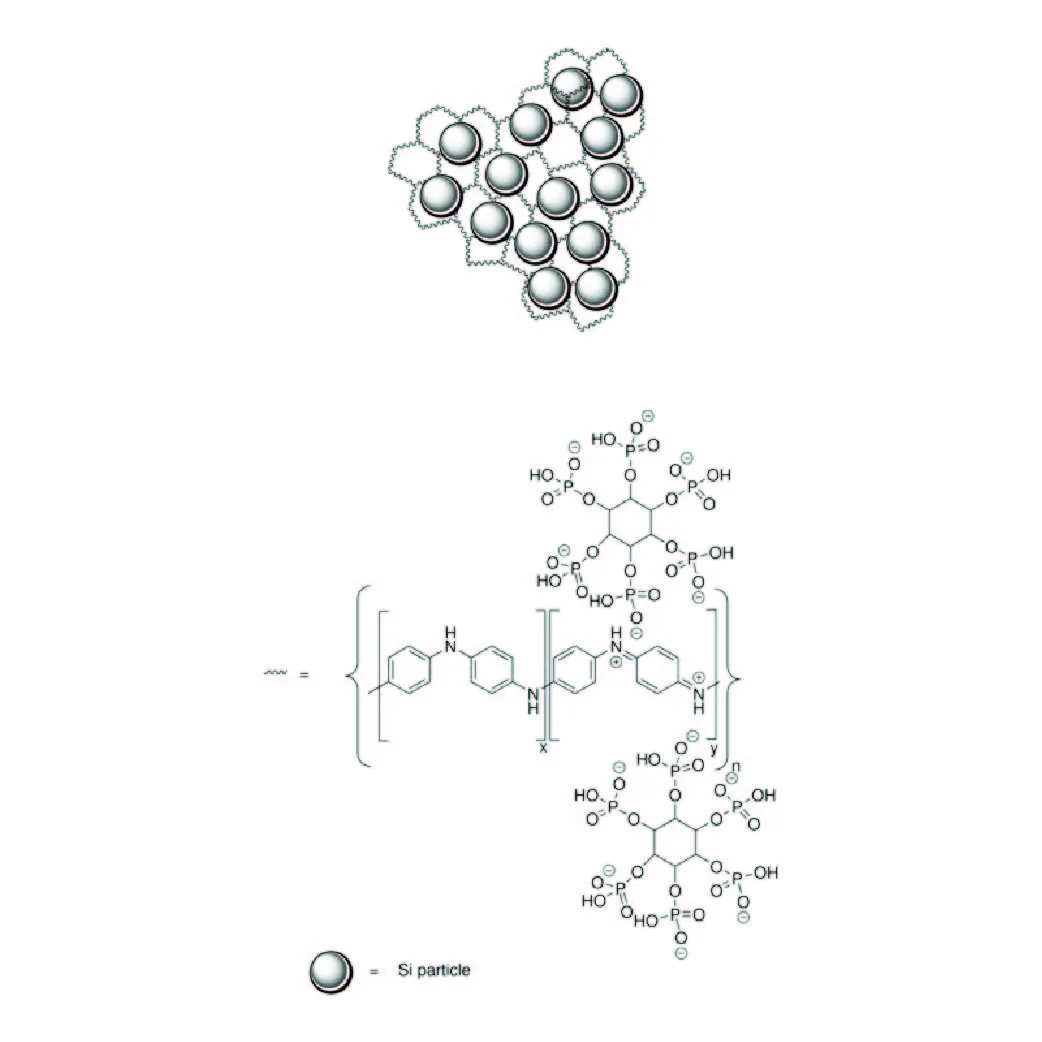

This composite is made by encapsulating silicon particles in an in-situ polymerized 3D-crosslinked conductive polyaniline framework. This Si/PANi composite not only allows fast electrical and ionic transport, but also provides free space to allow giant volume expansion. This Si/PANi composite provides a ready-to-use electrochemically active silicon composite that would increase the capacity of conventional lithium ion battery, and improve the cycle-life of Si-based anodes

  100% Authentic Guarantee
Compare
Add to wishlist
SKU: 912409-5G Category: Battery Materials
Share
Facebook Twitter Email linkedin WhatsApp
close
  • Description
  • Additional information
Description
Product CodeDescriptionProduct SizeForm
912409-5GHigh-performance silicon anode5gSolid
Additional information
Dimensions30 × 60 cm
Brand

Sigma

Estimated Delivery Time

3-6 weeks
